Product Summary

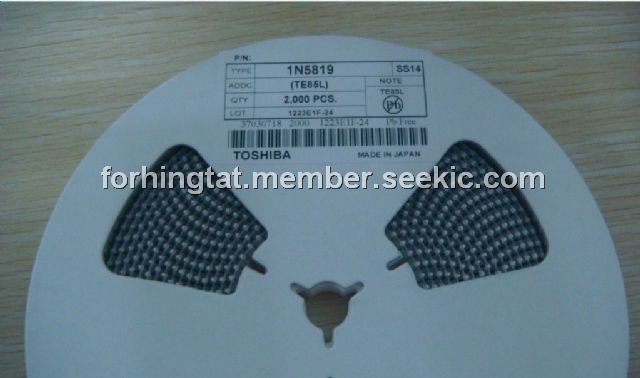

The 1N5819 is a 1A Schottky Rectifier.
Parametrics
1N5819 absolute maximum ratings: (1)Average Rectified Current:1.0A; (2)Non-repetitive Peak Forward Surge Current:25A; (3)Total Device Dissipation:1.25W; (4)Thermal Resistance, Junction to Ambient:80℃/W; (5)Storage Temperature Range:-65 to 125℃; (6)Operating Junction Temperature:-65 to 125℃.
Features
1N5819 features: (1)1.0 ampere operation at TA = 90℃ with no thermal runaway; (2)For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.

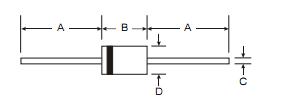

Diagrams
 |
