OPA2277U

high precision operational amplifier, 36V, 1nA, 140db, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~3.00

PartNumber:: OPA2277U

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-23

From Other Seller

Part Number:OPA2277U
US $1.50 - 3.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

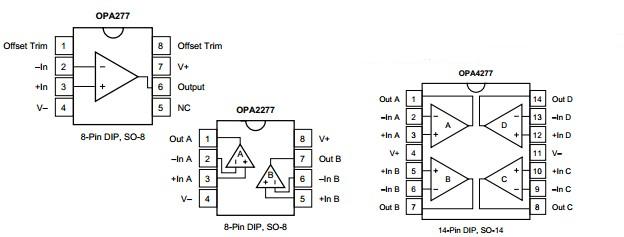

The OPA2277U is a high precision operational amplifier. The OPA2277U replaces the industry standard OP-177. They offer improved noise, wider output voltage swing, and are twice as fast with half the quiescent current. Features include ultra low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection. Single, dual, and quad versions have identical specifications for maximum design flexibility. OPA277 op amps are easy to use and free from phase inversion and overload problems found in some other op amps. They are stable in unity gain and provide excellent dynamic behavior over a wide range of load conditions. Dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.

Parametrics

OPA2277U absolute maximum ratings: (1)Supply Voltage: 36V; (2)Input Voltage: (V–) –0.7V to (V+) +0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature : –55°C to +125°C; (5)Storage Temperature: –55°C to +125°C; (6)Junction Temperature: 150°C; (7)Lead Temperature (soldering, 10s): 300°C.

Features

OPA2277U features: (1)ultra low offset voltage: 10μv; (2)ultra low drift: ±0.1μv/°c; (3)high open-loop gain: 134db; (4)high common-mode rejection: 140db; (5)high power supply rejection: 130db; (6)low bias current: 1na max; (7)wide supply range: ±2v to ±18v; (8)low quiescent current: 800μa/amp; (9)single, dual, and quad versions; (10)replaces op-07, op-77, op-177.
