Product Summary

The ATMEGA8515L-8AU is an 8-bit microcontroller with 8K bytes in-system programmable flash. By executing powerful instructions in a single clock cycle, the ATMEGA8515L-8AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA8515L-8AU absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 200 V; (2)IF(AV) Average Rectified Forward Current: 200 mA; (3)IFSM Non-repetitive Peak Forward Surge Current: 1.0A; (4)Tstg Storage Temperature Range: -55 to +150 ℃; (5)TJ Operating Junction Temperature: 150 ℃.

Features

ATMEGA8515L-8AU features: (1)One 8-bit Timer/Counter with Separate Prescaler and Compare Mode; (2)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (3)Three PWM Channels; (4)Programmable Serial USART; (5)Master/Slave SPI Serial Interface; (6)Programmable Watchdog Timer with Separate On-chip Oscillator; (7)On-chip Analog Comparator; (8)Power-on Reset and Programmable Brown-out Detection; (9)Internal Calibrated RC Oscillator; (10)External and Internal Interrupt Sources; (11)Three Sleep Modes: Idle, Power-down and Standby.

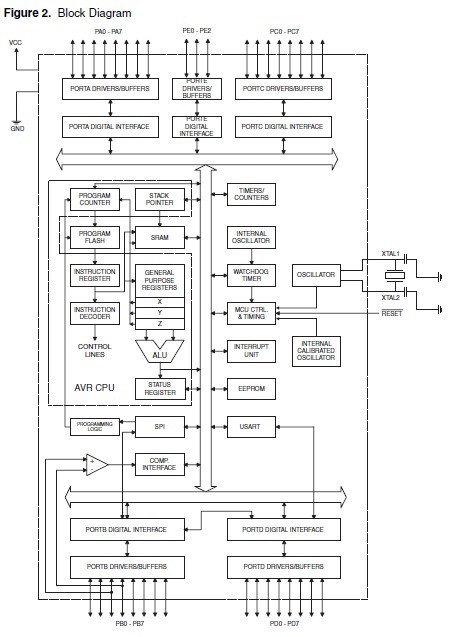

Diagrams

ATMEGA8515L-8AU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATMEGA8515L-8AU
ATMEGA8515L-8AU

Atmel

8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 35 I/O Pins

Data Sheet

0-1: $1.60
1-10: $1.52
10-25: $1.42
25-100: $1.15
ATMEGA8515L-8AUR
ATMEGA8515L-8AUR

Atmel

8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 512B SRAM-8MHz, IND

Data Sheet

0-1670: $1.31
1670-2000: $1.31
