N80C196KC20

16-bit microcontroller, 1.5W, 7.0V, 20 MHz, PLCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.30~3.00

PartNumber:: N80C196KC20

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-26

From Other Seller

Part Number:N80C196KC20
US $2.30 - 3.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

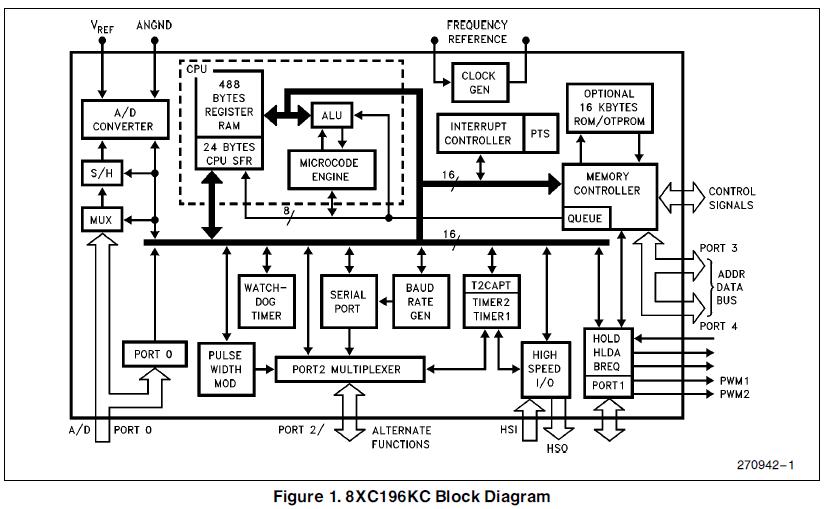

The N80C196KC20 is a 16-bit microcontroller. The N80C196KC20 provides a high performance processor along with low power consumption. Four high-speed capture inputs are provided to record times when events occur. Six high-speed outputs of the N80C196KC20 are available for pulse or waveform generation. The high-speed output can also generate four software timers or start an A/D conversion. Events can be based on the timer or up/down counter.

Parametrics

N80C196KC20 absolute maximum ratings: (1)Ambient Temperature Under Bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage On Any Pin to VSS: -0.5V to 7.0V; (4)Voltage from EA or VPP to VSS or ANGND: 13.00V; (5)Power Dissipation: 1.5W.

Features

N80C196KC20 features: (1)16 and 20 MHz Available; (2)488 Byte Register RAM; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)Peripheral Transaction Server; (6)1.4 ms 16 x 16 Multiply (20 MHz); (7)2.4 ms 32/16 Divide (20 MHz); (8)Powerdown and Idle Modes; (9)Five 8-Bit I/O Ports; (10)16-Bit Watchdog Timer; (11)Extended Temperature Available; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)OTPROM One-Time Programmable Version.
