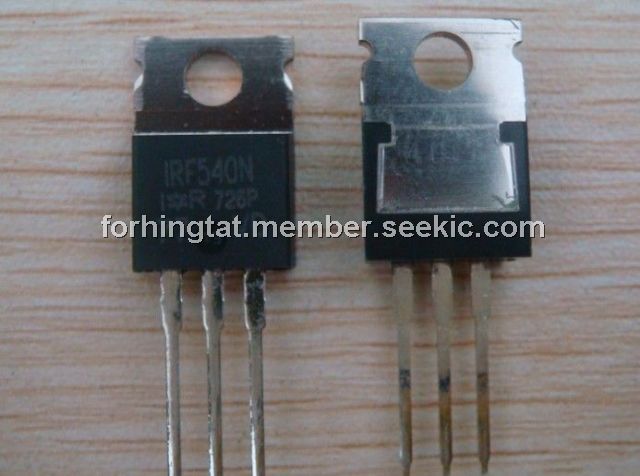

IRF540NPBF

HEXFET power MOSFET, 33A, 110W, 20V, TO-220

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~1.00

PartNumber:: IRF540NPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-22

From Other Seller

Part Number:IRF540NPBF
US $0.25 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF540NPBF is a HEXFET power MOSFET. Advanced HEXFET power MOSFETs from international rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.This benefit,combined with the fast switching speed and ruggedized device design that the IRF540NPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF540NPBF absolute maximum ratings: (1)ID@T=25℃ Continuous Drain Current, VGS@10V: MAX=33A; (2)ID@T=100℃ Continuous Drain Current, VGS@10V: MAX=23A; (3)IDM Pulsed Drain Current: MAX=72A; (4)PD@T=25℃ Power Dissipation: 110W; (5)Linear Derating Factor: 0.87W/℃; (6)VGS Gate-to-Source Voltage: ±20V; (7)IAR Avalanche Current: 16A; (8)EAR Repetitive Avalanche Energy: 13mJ; (9)dv/dt Peak Diode Recovery dv/dt: 7.0V/ns; (10)Soldering Temperature, for 10 seconds: 300℃(1.6mm from case ); (11)Mounting torque, 6-32 or M3 srew: 10 lbf.in (1.1N.m).

Features

IRF540NPBF features: (1)advanced process technology; (2)ultra low on-resistance; (3)dynamic dv/dt rating; (4)175℃ operating temperature; (5)fast switching; (6)fully avalanche rated; (7)lead-free.
