LMC555CM

CMOS industry standard 555 general purpose timer, 15V, 100 mA, 3 MHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: LMC555CM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-27

From Other Seller

Part Number:LMC555CM
US $0.10 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

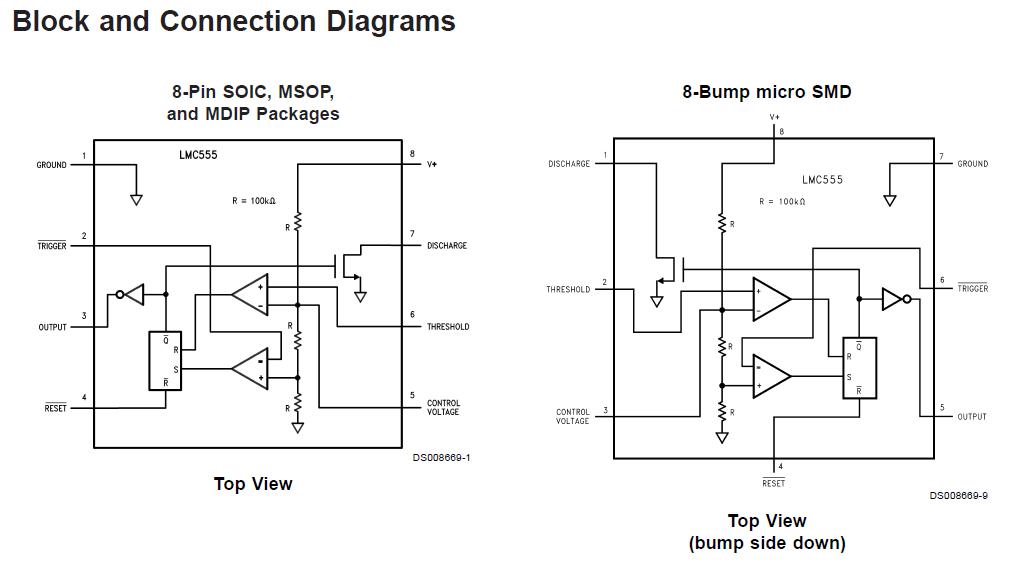

The LMC555CMX is a CMOS industry standard 555 general purpose timer. In addition to the standard package (SOIC, MSOP, and MDIP) the LMC555CMX is also available in a chip sized package (8 Bump micro SMD) using National’s micro SMD package technology. The LMC555CMX offers the same capability of generating accurate time delays and frequencies as the LM555 but with much lower power dissipation and supply current spikes. When operated as a one-shot, the time delay of LMC555CMX is precisely controlled by a single external resistor and capacitor. In the stable mode the oscillation frequency and duty cycle are accurately set by two external resistors and one capacitor. The use of National Semiconductor’s LMCMOS process extends both the frequency range and low supply capability.

Parametrics

LMC555CMX absolute maximum ratings: (1)Supply Voltage, V+: 15V; (2)Input Voltages, VTRIG, VRES, VCTRL, VTHRESH: -0.3V to VS + 0.3V; (3)Output Voltages, VO, VDIS: 15V; (4)Output Current IO, IDIS: 100 mA; (5)Storage Temperature Range: -65℃ to +150℃; (6)Soldering Information: MDIP Soldering (10 seconds): 260℃, SOIC, MSOP Vapor Phase (60 sec): 215℃, SOIC, MSOP Infrared (15 sec): 220℃.
