Product Summary
The 40CPQ035 is a center tap Schottky rectifier. The 40CPQ035 has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
Parametrics
40CPQ035absolute maximum ratings: (1)IF(AV)Max. Average Forward Current 40 A; (2)IFSM Max. Peak One Cycle Non-Repetitive: 3500A; (3)Surge Current (Per Leg): 430A; (4)EAS Non-Repetitive Avalanche Energy: 27 mJ; (5)IAR Repetitive Avalanche Current: 4 A; (6)TJ Max. Junction Temperature Range: -55 to 150 ℃; (7)Tstg Max. Storage Temperature Range: -55 to 150 ℃; (8)VR Max. DC Reverse Voltage: 35V; (9)VRWM Max. Working Peak Reverse Voltage: 35V.
Features
40CPQ035 features: (1)150° C TJ operation; (2)Center tap TO-247 package; (3)High purity, high temperature epoxy encapsulation for; (4)enhanced mechanical strength and moisture resistance; (5)Very low forward voltage drop; (6)High frequency operation; (7)Guard ring for enhanced ruggedness and long term reliability.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

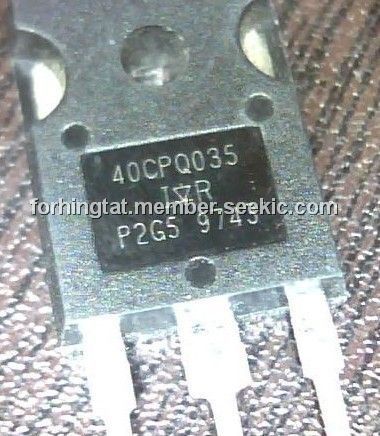

![]() 40CPQ035 |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 40 Amp 35 Volt Common Cathode |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() 40CPQ035PBF |
![]() |
![]() DIODE SCHOTTKY 35V 20A TO247AC |
![]() Data Sheet |
![]()
|
|
