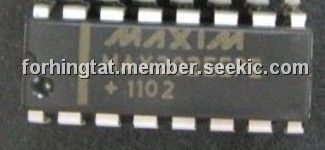

MAX202EEPE

Product Summary

The MAX202EEPE is a line driver/receiver. The MAX202EEPE is designed for RS-232 and V.28 communications in harsh environments. It output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for MAX202EEPE meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. The applications of the MAX202EEPE include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand-Held Equipment.

Parametrics

MAX202EEPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages: T_IN: -0.3V to (V+ + 0.3V), R_IN: ±30V; (5)Output Voltages: T_OUT: (V- - 0.3V) to (V+ + 0.3V), R_OUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, T_OUT: Continuous; (7)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW, 16-Pin Narrow SO (derate 8.70mW/℃ above +70℃): 696mW, 16-Pin Wide SO (derate 9.52mW/℃ above +70℃): 762mW, 16-Pin TSSOP (derate 9.4mW/℃ above +70℃): 755mW; (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX202EEPE features: (1)For Low-Voltage Applications: MAX3222E/MAX3232E/MAX3237E/MAX3241E/; (2)MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in a UCSP Package); (3)For Low-Power Applications: MAX3221/MAX3223/MAX3243: 1μA Supply Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown; (4)For Space-Constrained Applications: MAX3233E/MAX3235E: ±15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors; (5)For Low-Voltage or Data Cable Applications: MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESDProtected I/O and Logic Pins.

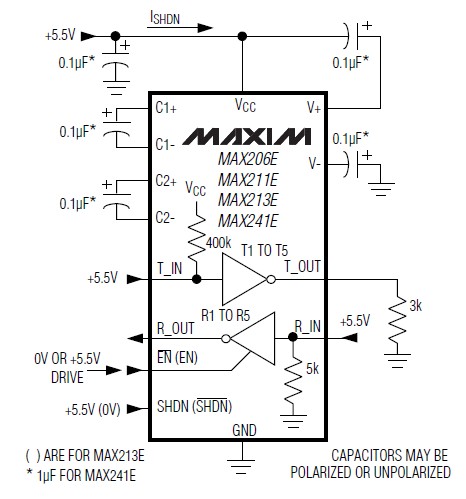

Diagrams
