Product Summary

The AD8062ARM is a rail-to-rail output voltage feedback amplifier offering ease of use and low cost. The AD8062ARM has bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.7 V. Despite being low cost, the AD8062ARM provides excellent overall performance. For video applications their differential gain and phase errors are 0.01% and 0.04° into a 150 Ω load, along with 0.1 dB flatness out to 30 MHz. Additionally, they offer wide bandwidth to 300 MHz along with 800 V/μs slew rate.

Parametrics

AD8062ARM absolute maximum ratings: (1)Supply Voltage: 8 V; (2)Internal Power Dissipation Plastic Package (N): 1.3 W; (3)Small Outline Package (R): 0.8 W; (4)SOT-23-5 Package: 0.5 W; (5)SOT-23-6 Package: 0.5 W; (6)μSOIC Package: 0.6 W; (7)Input Voltage (Common-Mode): (-VS - 0.2 V)to (+VS - 1.8 V); (8)Differential Input Voltage: ±VS; (9)Output Short Circuit Duration: Observe Power Derating Curves; (10)Storage Temperature Range R, RM, SOT-23-5, SOT-23-6: -65℃ to +125℃; (11)Operating Temperature Range: -40℃ to +85℃; (12)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

AD8062ARM features: (1)Low Cost; (2)Single (AD8061), Dual (AD8062); (3)Single with Disable (AD8063); (4)Rail-to-Rail Output Swing 6 mV VOS; (5)High Speed 300 MHz, –3 dB Bandwidth (G = 1), 800 V/μs Slew Rate, 8.5 nV/√Hz @ 5 V,; (6)35 ns Settling Time to 0.1% with 1 V Step; (7)Operates on 2.7 V to 8 V Supplies Input Voltage Range = –0.2 V to +3.2 V with VS = 5; (8)Excellent Video Specs (RL = 150Ω, G = 2)Gain Flatness 0.1 dB to 30 MHz, 0.01% Differential Gain Error, 0.04 Differential Phase Error, 35 ns Overload Recovery; (9)Low Power 6.8 mA/Amplifier Typical Supply Current, AD8063 400 μA when Disabled.

Diagrams

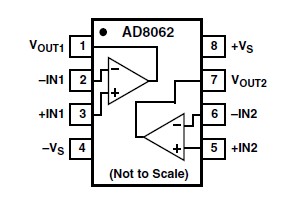

AD8062ARM pin connection
