Product Summary
The ISD1110PY is a high-quality, single-chip record/playback solution to 10- and 12-second messaging applications. The ISD1110PY include an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, and speaker amplifier, A minimum record/playback subsystem can be configured with a microphone, a speaker, several passives, two push-buttons, and a power source. Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage. The ISD1110PY is made possible through ISDs patented multilevel storage technology. Voice and audio signals are stored directly into memory in their natural form, providing high-quality, solid-state voice reproduction.
Parametrics
ISD1110PY absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65℃ to +150℃; (3)Voltage applied to any pin: (Vss - 0.3 V)to (Vcc + 0.3 V); (4)Voltage applied to any pin (Input current limited to ±20 mA: (Vgg -1.0 V)tO (Vcc + 1.0 V); (5)Lead temperature (soldering - 10 seconds): 300℃; (6)VCC-VSS: -0.3V to +7.0 V.
Features
ISD1110PY features: (1)Easy-to-use single-chip voice record/playback solution; (2)Playback can be edge- or level- activated; (3)lowing a record or playback cycle.

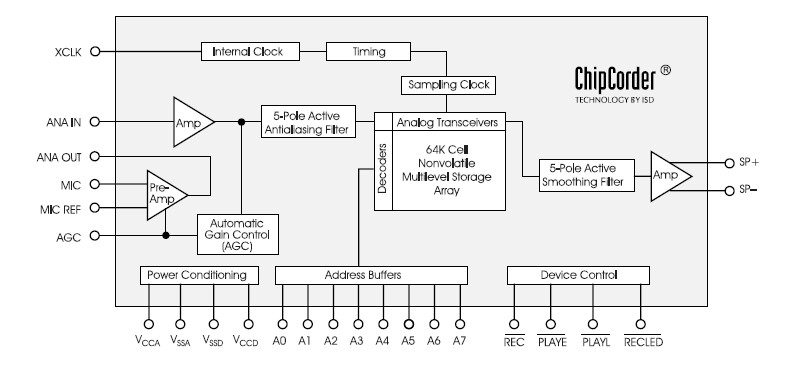

Diagrams
 |
