Product Summary
The LMC6484AIMX is a cmos quad rail-to-rail input and output operational amplifier. The LMC6484AIMX provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers. It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6484AIMX is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC274 and TLC279. Maximum dynamic signal range is assured in low voltage and single supply systems by the LMC6484AIMX rail-to-rail output swing. The LMC6484AIMX rail-to-rail output swing is guaranteed for loads down to 600W.
Parametrics
LMC6484AIMX absolute maximum ratings: (1)ESD Tolerance: 2.0 kV; (2)Differential Input Voltage: ±Supply Voltage; (3)Voltage at Input/Output Pin: (V+)+ 0.3V, (V-)-0.3V; (4)Supply Voltage (V+- V-): 16V; (5)Current at Input Pin: ±5 mA; (6)Current at Output Pin: ±30 mA; (7)Current at Power Supply Pin: 40 mA; (8)Lead Temp. (Soldering, 10 sec.): 260℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.
Features
LMC6484AIMX features: (1)Rail-to-Rail Input Common-Mode Voltage Range (Guaranteed Over Temperature); (2)Rail-to-Rail Output Swing (withi20 mV of supply rail, 100 kW load); (3)Guaranteed 3V, 5V and 15V Performance; (4)Excellent CMRR and PSRR: 82 dB; (5)Ultra Low Input Current: 20 fA; (6)High Voltage Gai(RL = 500 kW): 130 dB; (7)Specified for 2 kW and 600W loads.

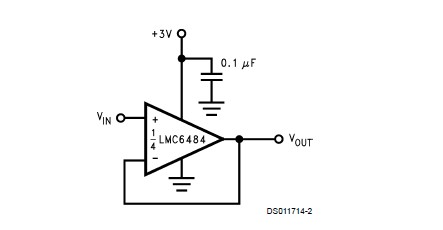

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMC6484AIMX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LMC6484AIMX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps CMOS Quad R/R I/O Op Amp |
Data Sheet |
|
|
||||||||||||
