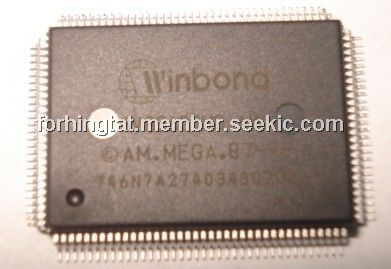

W83627HG-AW

Product Summary

The W83627HG-AW is a Winbond LPC I/O. It features a whole new interface, namely LPC(Low Pin Count) interface, which will be supported in the next generation Intel chip-set. With this additional freedom, we can implement more devices on a single chip as demonstrated in W83627HG-AW’s integration of Game Port and MIDI Port. It is fully transparent in terms of software which means no BIOS or device driver update is needed except chip-specific configuration. The W83627HG-AW provides two high-speed serial communication ports(UARTs), one of which supports serial Infrared communication.

Parametrics

W83627HG-AW absolute maximum ratings: (1)Power Supply Voltage(5V):-0.5 to 7.0V; (2)Input Voltage:-0.5 to VDD+0.5V; (3)RTC Battery Voltage VBAT:2.2 to 4.0V ; (4)Operating Temperature:0℃ to +70℃; (5)Storage Temperature:-55℃ to +150℃.

Features

W83627HG-AW features: (1)Meet LPC Spec. 1.0 ; (2)Support LDRQ#(LPC DMA), SERIRQ(serial IRQ); (3)Include all the features of Winbond I/O W83977TF and W83977EF ; (4)Integrate Hardware Monitor functions ; (5)Compliant with Microsoft PC98/PC99 Hardware Design Guide ; (6)Support DPM (Device Power Management), ACPI ; (7)Programmable configuration settings ; (8)Single 24 or 48 MHz clock input; (9)Compatible with IBM PC AT disk drive systems ; (10)Variable write pre-compensation with track selectable capability ; (11)Support vertical recording format ; (12)DMA enable logic ; (13)16-byte data FIFOs ; (14)Support floppy disk drives and tape drives ; (15)Detects all overrun and underrun conditions ; (16)Built-in address mark detection circuit to simplify the read electronics ; (17)FDD anti-virus functions with software write protect and FDD write enable signal(write data signal was forced to be inactive); (18)Support up to four 3.5-inch or 5.25-inch floppy disk drives ; (19)Completely compatible with industry standard 82077 ; (20)360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data transfer rate ; (21)Support 3-mode FDD, and its Win95/98 driver .

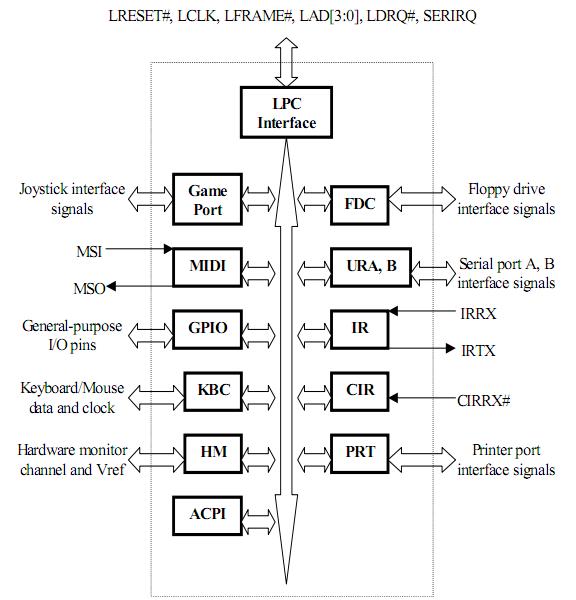

Diagrams
