TVP5147M1PFPRG4

Product Summary

The TVP5147M1PFPRG4 is a high-quality, single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147M1PFPRG4 decoder supports the analog-to-digital (A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-video into component YCbCr. The TVP5147M1PFPRG4 includes two 10-bit 30-MSPS A/D converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of 10 video input terminals can be configured to a combination of YPbPr, CVBS, or S-video video inputs. Composite or S-video signals are sampled at 2× the ITU-R BT.601 clock frequency, line-locked alignment, and are then decimated to the 1× pixel rate. CVBS decoding uses five-line adaptive comb filtering for both the luma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. A chroma trap filter is also available. On CVBS and S-video inputs, the user can control video characteristics such as contrast, brightness, saturation, and hue via an I2C host port interface. Furthermore, luma peaking (sharpness) with programmable gain is included, as well as a patented chroma transient improvement (CTI) circuit.

Parametrics

TVP5147M1PFPRG4 absolute maximum ratings: (1)Supply voltage range: IOVDD to I/O GND: 0.5 V to 4 V, DVDD to DGND: -0.2 V to 2 V; (2)Digital input voltage, VI to DGND:-0.5 V to 4.5 V; (3)Digital output voltage, VO to DGND: -0.5 V to 4.5 V; (4)Analog input voltage range AIN to AGND: -0.2 V to 2 V; (5)Operating free-air temperature, TA: 0℃ to 70℃; (6)Storage temperature, Tstg: -65℃ to 150℃; (7)IOL Output current, Vout = 0.4 V: 4 mA.

Features

TVP5147M1PFPRG4 features: (1)Two 30-MSPS, 10-bit A/D channels with programmable gain control; (2)Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60)and SECAM (B, D, G, K, K1, L)CVBS, and S-video; (3)Supports analog component YPbPr video format with embedded sync; (4)10 analog video input terminals for multisource connection; (5)Supports analog video output; (6)User-programmable video output formats; (7)HSYNC/VSYNC outputs with programmable position, polarity, width, and field ID (FID)output; (8)Composite and S-video processing; (9)I2C host port interface; (10)Reduced power consumption: 1.8-V digital core, 3.3-V for digital I/O, and 1.8-V/3.3 V analog core with power-save and power-down modes; (11)80-terminal TQFP PowerPAD package.

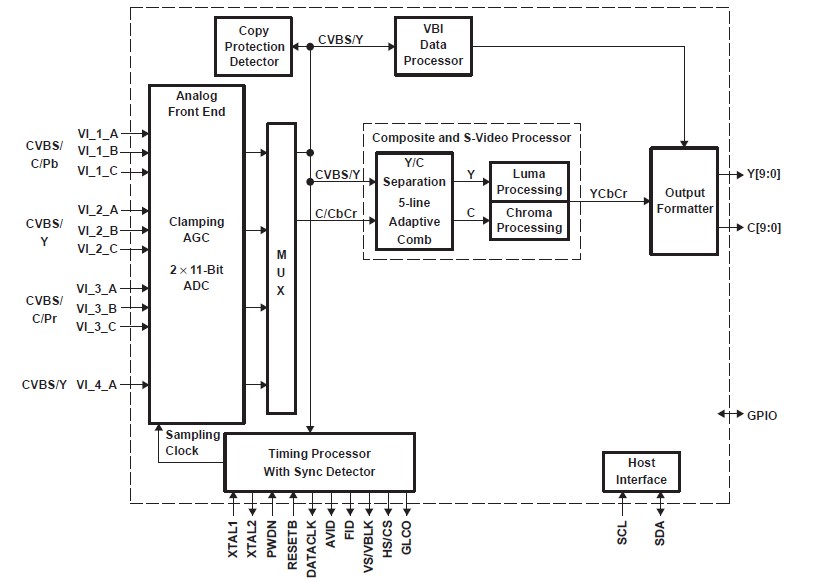

Diagrams
