Product Summary
The BA5984FP-E2 is a Power Driver For CD Player.
Parametrics
BA5984FP-E2 absolute maximum ratings: (1)Power Supply Voltage Vcc: 13.5 V; (2)Power Dissipation Pd: 1.7W; (3)Operating Temperature Range Topr: -40 to 85 ℃; (4)Storage Temperature Range Tstg: -55 to 150 ℃.
Features
BA5984FP-E2 features: (1)5-ch driver comprising of 4 channels for BTL drivers and 1 channel for reversible drivers; (2)Use of the HSOP-28PIN power package allows downsizing of the set.; (3)A built-in thermal shutdown circuit installed.; (4)A wide dynamic range (VCC=8V, 6.0V (Typ.)when RL=8Ω)<BTL Driver>; (5)A general op-amp connected to the input terminal allows a differential input and the addition of signals. <Loading Driver>; (6)A built-in brake function installed; (7)A built-in diode for protecting against over-voltage caused by a counter electromotive force.
Diagrams

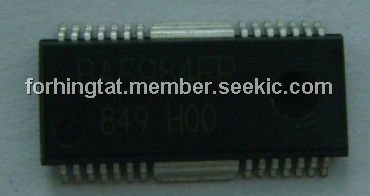

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA5984FP-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers POWER DRIVER 28PIN |
Data Sheet |
|
|
||||||||||||
